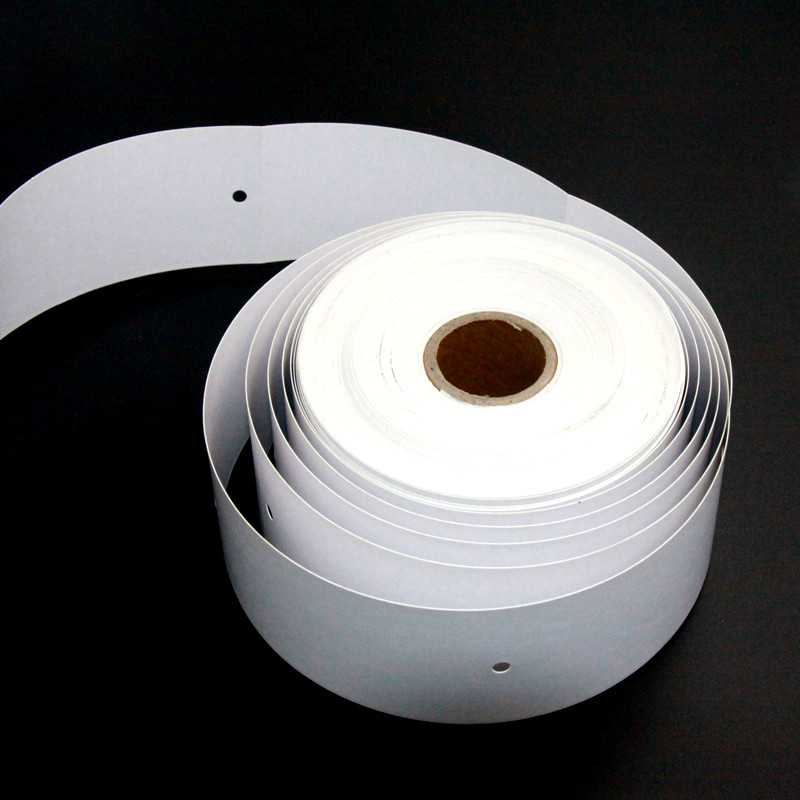

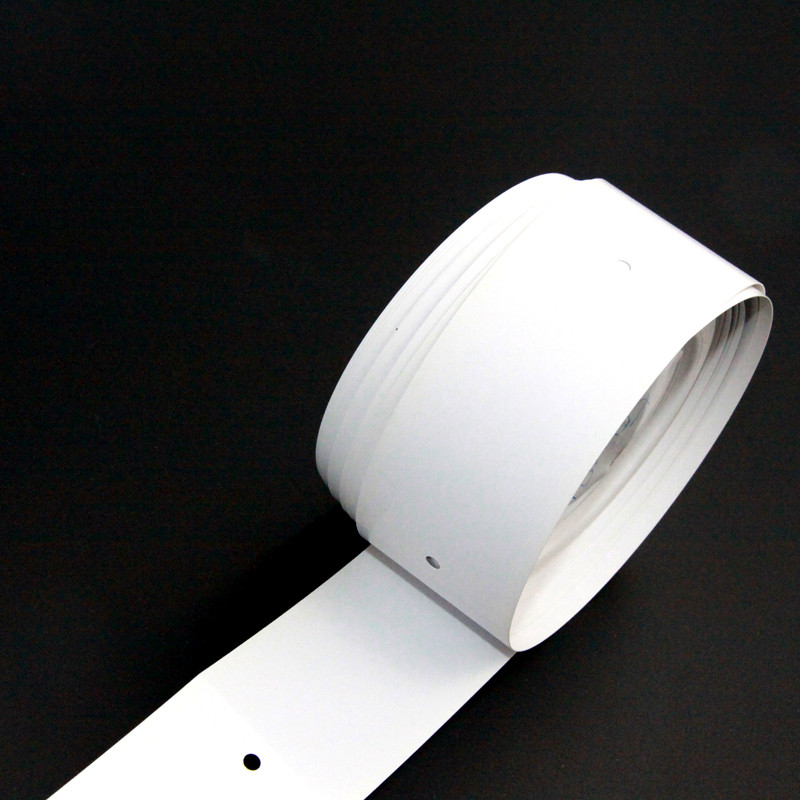

Custom high temperature resistant sticker

Which temperature has been reached. The self-adhering indicators are available in packages of 16 labels each. Labels are not waterproof and therefore cannot be used with liquids or excessively high ambient humidity. Store in a cool, dry place.

When you need high temperature labels for specialty applications, BAZHOU offers a complete selection of products to meet your requirements. Our Polyimide Labels are ideal for use in extreme high temperatures and applications involving harsh industrial solvents. We offer high temperature labels that can withstand temperatures up to 1,000°F for a few seconds, temperatures greater than 700°F for a few minutes, and above 500°F for hours.

Permanent self adhesive for barcode or alphanumeric identification of electronic components such as printed circuit boards & PC cards. Polyimide labels are available in sizes from 0.25 in. x 0.25 in. to 3 in. x 0.375 in. & feature a polyimide film with high performance printable topcoat & high temperature acrylic pressure sensitive adhesive. Polyimide labels withstand the various fluxes, molten solder dips or solder reflow methods & cleaning solvents encountered in the manufacture of printed circuit boards.

PI high temperature labels for printed circuit board. These labels can stand in harsh temperature. They are specially designed for use in PCB printed circuit board or related electronic parts during SMT and DIP waving soldering process. It is the ideal material to remain excellent performance under extreme application environments.

High temperature resistant label material is designed for extreme environment faced by the treatment of printed circuit board, regardless of the circuit board or components on the label facing how bad, BAZHOU can always guarantee readable Khan clarity and stability.

These sticker labels are usually made of PET and polyamides and can withstand very extreme conditions like ultra high temperatures, corrosive solvents and UV radiation. They have several applications but are generally used in the PCB , aerospace and semiconductor industries. These labels last for the entire life of the product due to their meticulous construction.

Extreme Temperature labels can withstand temperatures (up to 350°C) and are used to identify printed circuit board & electronic components, even surviving underside pcb wave soldering. To resist the high temperatures found in lead free solder processes, BAZHOU are made out of Polyimide, as opposed to Polyester used for normal component identification.

BAZHOU has a wide range of polyimides available in different colours, all with ESD characteristics, suited for automatic applying and usable in a variety of print technologies, offering good barcode printability and mainly used for traceability.

Product No.	CCHT139
Facestock	Polyimide Film(PI)
Thickness	0.139 mm
Adhesive	No
Liner	Matte kraft paper 80 g/m2, 0.1065mm
Color	White, Green, Pink, Black, Blue
Serice Temperature	600°C short term 350°C long term
Application Temperature	10°C
Printing	Full Color
Features	Steel maker on slabs, blooms, coils (hot), billets and wires, and for aluminium applications including sows & pigs, coils (hot and cold), ingots and billets.
Size	Customized
